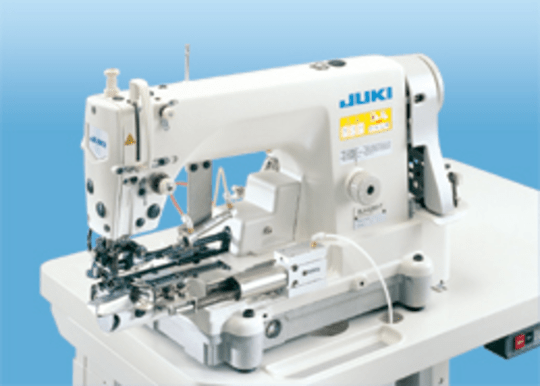

High-speed, Cylinder-bed, 1-needle, Needle-feed Lockstitch Machine with Large Hook
The cylinder-bed lockstitch machine with a thread trimmer is designed for hemming the bottom of jeans, casual pants and work uniforms.
The machine offers excellent seam quality and sewing capabilities.
Highly consistent and reliable thread trimmer mechanism.
●The needle bar stroke is as high as 35mm. This offers increased penetration of the needle into the material to improve adaptability to heavy-weight materials.
●The machine employs a highly reliable horizontal thread trimming mechanism which cuts thick thread without fail.
●The machine demonstrates excellent sewing capabilities, when sewing heavy-weight denim or multi-layered portions, that free it of sewing troubles such as stitch gathering, stitch skipping and needle breakage.
●The entire knife unit can be installed/removed.
●The moving knife position can be easily adjusted.
●The knife unit is of a bed device type. This means that adjustment of the knife unit is not required after removing the throat plate.
●The machine is able to sew material with a low presser foot pressure while preventing the material from flapping. As a result, the material can be sewn free of puckering.
●The top- and bottom-roller style feed mechanism forms seams with increased consistency to achieve improved hemming quality while reducing uneven hems.
Every time that operation of the the thread trimmer occurs, the air blower keeps the knife clean by blowing off thread chips from the blade, ensuring the reliable operation of the thread trimmer.
Coupled to the automatic presser lifter, the hemming binder automatically opens/closes. This enables efficient operation.
●The machine is provided with a 1.7-fold hook, which demonstrates remarkable productivity.
●The binder can be adjusted both longitudinally and laterally.
●The binder can also be independently opened/closed by operating the knee switch (knee lifter for machines without a thread trimmer).
●The needle feed amount can be easily adjusted with the scale dial, so as to get the best suited seam quality when the material or thread is changed.
The lubrication mechanism effectively reduces oil stains on the material.
●The machine has adopted a forced circulation mechanism in consideration of reliable oiling and oil leakage prevention.
●The frame and cylinder-bed sections are provided with a circulation feature to prevent oil leakage. In addition, to ensure reliable operation, a gasket is fitted inside the frame, preventing any leakage of oil from the needle bar.
●The machine comes with a newly designed needle bar sliding mechanism that is highly durable and free of play.
Model name DLN-6390 DLN-6390-7 Max. sewing speed 5,000sti/min Stitch length Standard gears: 3.2mm (2.8mm) / Supplied gears: 2.3mm, 3.6mm /
Optional gears: 2.1mm, 2.5mm, 4.2mm
(utilized by changing pitch conversion gears)Presser foot Max. 14mm Binder open / close type Manual type Driven by air cylinder Cylinder-bed diameter 180mm Needle UY180GVS Nm140 range of use: Nm90～Nm150 (equivalent to #14～#22.5)
