OVERVIEW

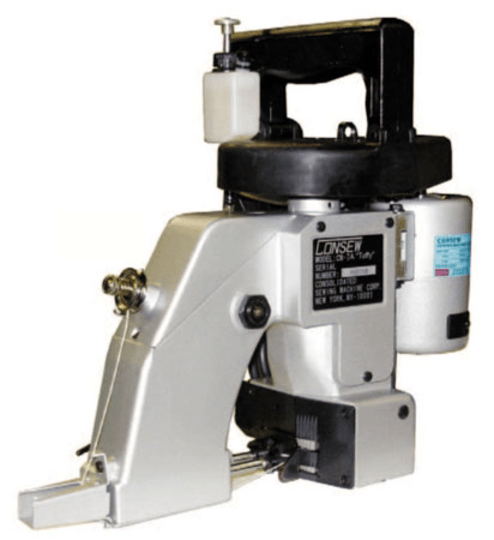

Heavy Duty, Single Thread, Chainstitch, Bag Closing Machine
Featuring an Extra Heavy Feed Dog
with Oil Lubrication System.
"NEWLONG" STYLE
APPLICATIONS
• Designed to close bags made of such materials as jute, cotton, linen, paper, burlap, plastic and waterproofed materials
• Suitable for plain and folded top closures
• Used by packers of flour, grain, fertilizer, feed, chemicals, seed, coffee, sugar, salt, grocery staples, minerals and other products
FEATURES
• Portable
• Uses standard needles
• Uses popular type thread cones
• Protected cutting blades sever the thread after the bag is closed
• Easily adapted for stationary or suspended use without loss of portable features
• Starts sewing any thickness without raising presser foot
Also Available:
Model CN-7A/220 is for 220 volts
Model CN-27A Two Thread Bag Closer
Model CN-27A/220 is for 220 volts
"Newlong" style: Most Parts Are Interchangeable with Newlong Bag Closing Machine parts
SPECIFICATIONS
| Number of Needles | 1 (Single) |
| Feeding Mechanism | Drop Feed |
| Workspace | Standard Workspace |
| Standard or Full Function | Standard Functions |
| Stitch Type | 101 |
| Speed, Max (S.P.M.) | 1600-1800 |
| Max Stitch Length | 9/32" (7.2mm) |
| Needle Used | 92 x 1 - 25 |
| Looper | a-300 |
| Net Weight | 12lbs. (5.4kg.) |
| Motor | 110 vac (220 available) |
