Consew Industrial machines Meistergram Gem 1504 Four Head Commercial Embroidery Machine
Roll over image to zoom in Click on image to zoom

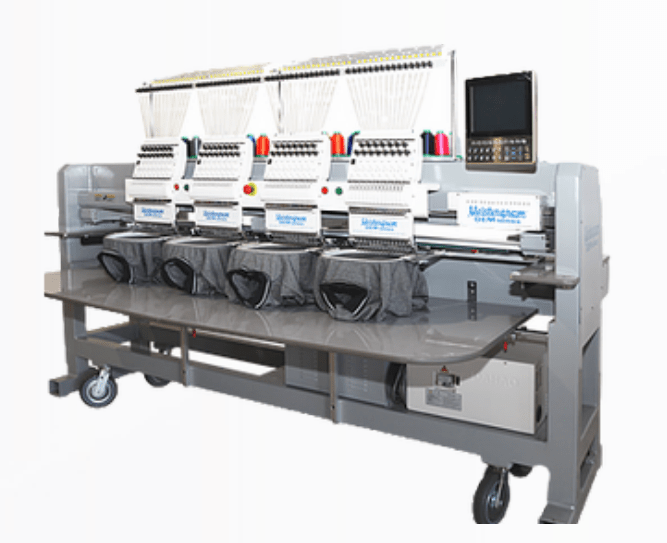

Consew Industrial machines Meistergram Gem 1504 Four Head Commercial Embroidery Machine

Meistergram Gem 1504 Four Head Commercial Embroidery Machine

Consew
Price:
$ 36,000.00
Synchrony Credit Card Banner

  • GEM 1504

    Four Head Commercial

    Embroidery Machine





      • Commercial Industrial

      • Tubular, flat and cap capable

      • 15.7"x 17.7" Sew Field per head

      • Easy to use panel

      • On-board lettering

      • Max speed 1200 Stitches per minute

      • Hoops (different sizes)

      • Cap ring, cap driver, hoop station

      • Cap system 270 degrees




  • Features and Specs

    Features and Specs

    • User friendly control panel with On-board help menu – defines keys and operation functions.
    • Optimal ergonomic operating height (Eliminates hard to reach hoop placement and helps avoid physical strain).
    • Brass inserted tension knobs for smooth adjustment.
    • USB port (supports .dst, .dsb, .zsk, and .fdr files).
    • Simple square tracing features.
    • 270-degree cap driver - embroider ear to ear in one cycle.
    • Independent adjustable presser foot height.
    • Smooth and Quiet Operation compared to the competition.
    • Onboard lettering system.
    • Color program memory retention (Stores color sequence information for future use of design).
    • Flat goods table drops and serves as a work station while operating in tubular or cap modes.
    • Includes extra hoop for quick change and production continuity (2x each hoop size, some exclusions apply).
    • 4 Heads.
    • Maximum sew area of 400mm(x) x 470mm(y).
    • Maximum speed of 1000 stitches per minute.
    • Memory storage capacity: 100 million stitches / 800 designs capacity (1 million stitches per design max).
    • Program up to 500 color changes per single file.
    • Multi-language support includes English, Spanish, Portuguese, and more.
    • 110/230 Interchangeable input.
    • Built-in replaceable protective fuses.
    • Encoder controlled stepper motors for high precision and the best stitch quality every time.
    • Heavy Duty A/C color change motor delivers smooth color changes.
    • Panasonic Servo motor for the main drive system.
    • On-board component testing functions for easy troubleshooting.
    • Industrial grade powder coat for maximum durability and corrosion resistance.
    • High quality tensioners with brass plate inserts to give the smoothest pull of tension.
    • Dimensions: 106” x 35.5” x 68.75”.
    • Weight: 1430 lbs.
