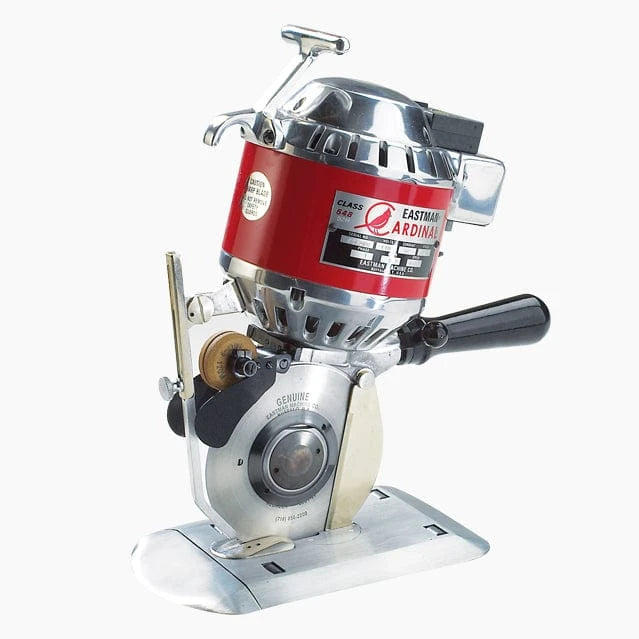

The Cardinal® model 548 is Eastman’s most widely-used round knife machine. It is available in two different blade sizes, and it is designed with a lightweight, powerful motor to provide optimum cutting configuration.
Eastman round knife machines are ideally suited for cutting large radius curves, straight lines and are applicable for a wide range of difficult to cut materials.
- Available with two different blade sizes
- Powerful motor provides versatility for cutting a wide range of materials
- Blades are available in carbon steel, high speed steel, grooved and PTFE coated
Additional Information
| Motors |
110V, 1ph, 50/60Hz 220V, 1ph, 50/60Hz High speed (3600/3000 RPM) Low speed (1800/1500 RPM)
|
| Horsepower |
0.34hp, 1ph 0.48hp, 3ph
|
| Weight |
21 lbs. (9.52kg)
|
| Blades |
Standard: Carbon Steel Optional: High Speed Steel, Grooved, PTFE Coated
|
| Sharpener Stones |
Standard: 120 Heavy Optional: 150 Medium, 220 Fine
|
| Options |
Knife lubricator, stationary base plate
|
| Blade Size |
5.25 in. (13.3 cm) 6 in. (15.2 cm)
|
| Cutting Capacity |
3.125 in. (7.95cm) 3.5 in. (8.89cm)
|
Disclaimer: All indicated specifications, dimensions, weights and performance data are approximate and subject to change without notice.
