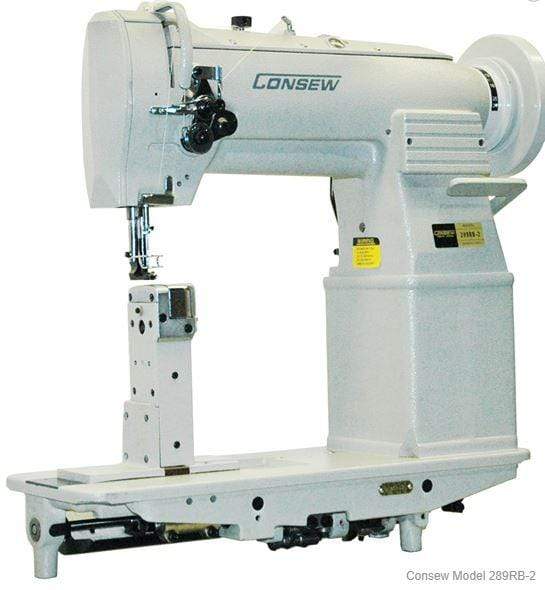

OVERVIEW
High Speed, Post Type, Single Needle, Drop Feed, Needle Feed, Walking Foot, Alternating Presser Feet, Lockstich Machine
With: Centra-Lube Semi-Automatic Lubrication System, Large Vertical Axis Rotary Hook and Bobbin, Reverse Feed, Safety Clutch
APPLICATIONS:
- For sewing medium to heavy weight fabrics, leather, canvas, vinyl, synthetics and various coated and laminated materials
- For stitching uneven, hollow, tubular and curved articles
- Designed for stitching such products as boots, shoes, gloves, luggage, handbags, overalls, raincoats, bags, umbrellas, awnings, covers, tarpaulins, tents, sports and camping equipment, wearing apparel, outdoor clothing, etc.
- Suitable for edge stitching operations, and top stitching
FEATURES
- Centra-Lube® semi-automatic lubrication system
- Oil fed take-up
- Safety clutch prevents the hook from being damaged
- Large bobbin allows for longer operation
- Large vertical axis hook allows for use of thick thread and therefore ornamental stitching can be obtained
- Compound feed, walking foot mechanism assures even feeding of material
- Reverse stitching
- Simple adjustment permits raising and lowering of the center foot which allows for sewing different thicknesses of material
U.S Warranty:
90 Days labor on defects in materials and workmanship.
** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.
Disclaimer: Due to the weight and shipping methods used for industrial machines they may experience marring and scratches during shipping. This will not affect the operation of the machine.
Please read our "Freight Shipping" Policies under the About us on our Home Page
Please call us at 1-800-487-7397 for any questions
SPECIFICATIONS
Number of Needles 1 (Single) Feeding Mechanism Walking Foot Workspace Standard Workspace Standard or Full Function Standard Functions Speed, Max (S.P.M.) 2400 Clearence Under Presser Foot 25/64" (10mm) Stitch Length 4 s.p.i.i (6mm) Needle 135 x 17 Bobbin Pre-Wound S and U Bed Size 7" 20-3/8" (177mm x 518mm) Stitch Type 301 Needle Bar Stroke 1 5/16" (33mm) Hook 14005 Post Height 7" (178mm) Work Surface 2 1/8" x 2" (54mm x 51mm)
