Description
-
APPLICATIONS
- For overedging and trimming various materials from lightweight fabrics such as chiffons, silk, suit lining, tricot, linen, cotton, general dress materials and woolens to heavyweight fabrics such as tweeds, coat cloth, jersey and denim
- Sew through denim as well as through the sheerest of fabrics without puckering
- Suitable for overedging such products as jackets, sweaters, dress and sports shirts, overalls, uniforms, jeans, work pants, dresses, jump suits, slips, negligees, pajamas, bathing suits, trousers and coats
- Suitable for general overedging, cross seaming, plain seaming, pintucking and braiding. You can ornament with pintuck or braid stitching and ornamental overlocking
- Perfect for sample rooms, alteration rooms, tailor's shops, drapery shops, dry cleaners, department stores, dress makers and the home
FEATURES
- Differential Feed
- Easy color-coded threading
- Counterbalanced mechanism. Precision feet for smooth, vibration-free operation
- Telescoping thread mast (convenient extension spool holders)
- Adjustable stitch length dial
- High-rise looper mechanism with presser foot lift up to 5/32" (4.5 mm)
- Adjustable cutting width. Heavy duty top tungsten-carbide steel knife and lower carbon steel knife ensures sharp, clean cutting
- Easy thread tension control for any thickness of materials and any threads
- Needle guard prevents needle from bending or breaking when stitching heavyweight materials such as denim etc.
- Auto Tension Release
- Attachable Clean Pocket
- Equipped with built-in motor, electronic foot-operated speed control
- Built-in LED sew light, ruler, handle and seam guide
- Removable cloth plate for cylinder operations
SPECIFICATIONS
Number of Needles 2 (Double) Feeding Mechanism Differential Workspace Standard Workspace Standard or Full Function Standard Functions Stitch Type Coverstitch - Safety Stitch Speed, Max (S.P.M.) 1200 Max Stitch Length up to 4mm Needle Used HAX1 Clearance Under Foot 4.0 mm Differential Ratio 0.5 min - 2.0 max Dimensions Lv.300 mm x W.310 mm x H.320 mm Power 110 vac (220 optional) Machine Weight 15.5 lbs. (7.0kg) Shipping Weight 21 lbs. (9.5kg) Seam Width Left Needle: 5.2 - 6.7mm Stitch Width, Max. Right Needle: 3.0 - 4.5 mm Motor 110 vac (220 available) -
OVERVIEW

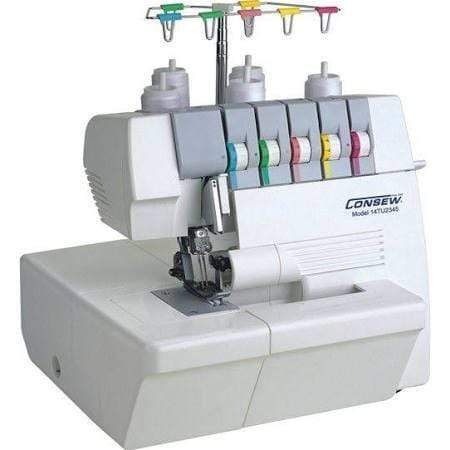

Portable Coverstitch Machine, Two Needle, Two and Three Thread,
with Differential Feed. For all coverstitch sewing applications. If you're ready to take your sewing to a new level, then you're ready for the Consew "Coverlock". It makes the decorative and professional touches easier than you ever thought they would be. The Consew "Coverlock" puts every feature or capability you could want at your fingertips.
