OVERVIEW

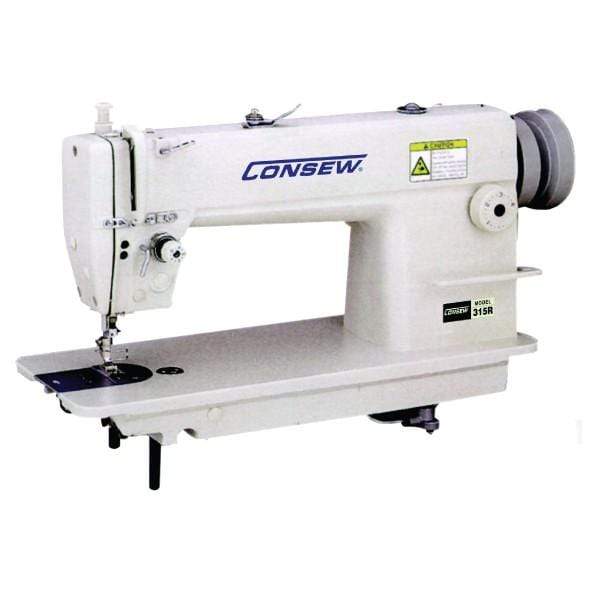

High Speed, Single Needle, Drop Feed, Needle Feed, Lockstitch Machine
With: Automatic Lubrication System, Reverse Feed
APPLICATIONS
- For stitching light to medium weight fabric, knits, synthetics, vinyl, canvas, denim and coated and laminated material
- Suitable for attaching pockets to shirts, sewing collars and cuffs, stitching skirts, blouses, dresses, raincoats, general wearing apparel
FEATURES
- High speed - 5000 S.P.M. for light to medium-weight materials
4000 S.P.M. for medium to heavy-weight materials - Horizontal axis transverse rotary hook
- Synchronized drop and needle feed assures even feeding of slippery and difficult to feed materials
- Fully automatic lubrication with recirculating pump
- For medium to heavy-weight materials
SPECIFICATIONS
Number of Needles 1 (Single) Feeding Mechanism Needle Feed Workspace Standard Workspace Standard or Full Function Standard Functions Speed, Max (S.P.M.) 4000 Clearence Under Presser Foot Hand 7/32" (5.5mm), Knee 9/16" (14mm) Stitch Length 5 s.p.i. (5mm) Work Space 10" (254mm) Needle 16 x 257 Bobbin Pre-Wound L Bed Size 7" 18 7/8" (178mm x 479mm) Needle Bar Stroke 1 3/8" (34.6mm) Hook C-29 Lubrication Fully Automatic
